Twin Yanmar 170hp common rail four cylinder turbo intercooled diesels driving angle drive reduction gearboxes coupled to conventional drive shafts with bronze propellers. The engine bays are sealed off with bulkheads and are fully lined with sound insulation including the hull section.
The steering is hydraulic linked to two twin stainless steel rudders. An emergency tiller is included and stored in the aft seat locker.
2 x built in fibreglass 93 gallon/422litre fuel tanks. These were emptied and thoroughly cleaned out in August 2020. New fuel filters fitted at the same time at a cost of £990.
Each engine is fully independent with its own fuel supply. Emergency fuel link valve to divert both fuel tanks to supply either engine, in case of an engine breakdown. Automatic fire extinguishers in the engine bays.
Two 12 volt batteries with isolating selector switches are fitted, each battery has a voltmeter. Power circuits are protected by visi-rocker circuit breakers mounted in a panel on the bulkhead to the fore cabin. A 240 volt ring main with sockets in the Wheelhouse, Galley and Fore cabin. A parallel switch is included to link together in the event that one battery is discharged.
Horn, Automatic bilge pump, Lifebuoys Gas alarm, smoke detector and Carbon monoxide detector, fire extinguisher and fire blanket. Two fire extinguishers in wheelhouse.

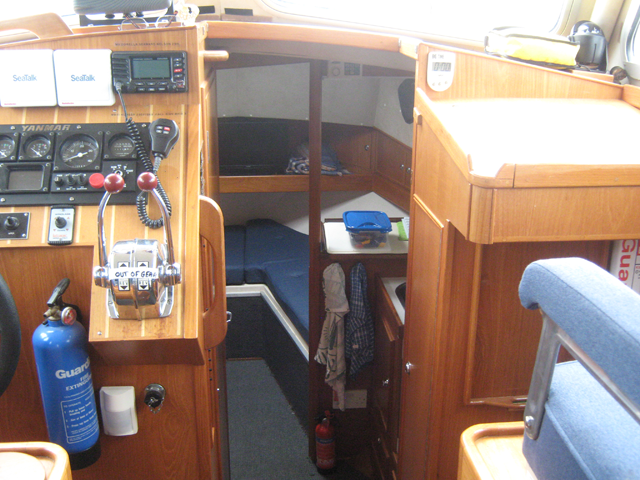

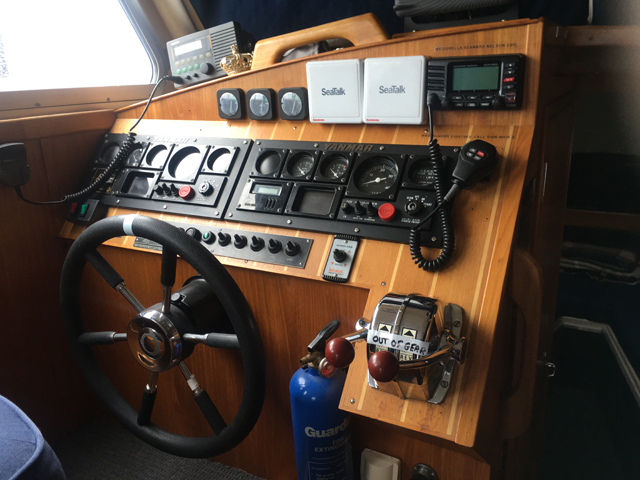

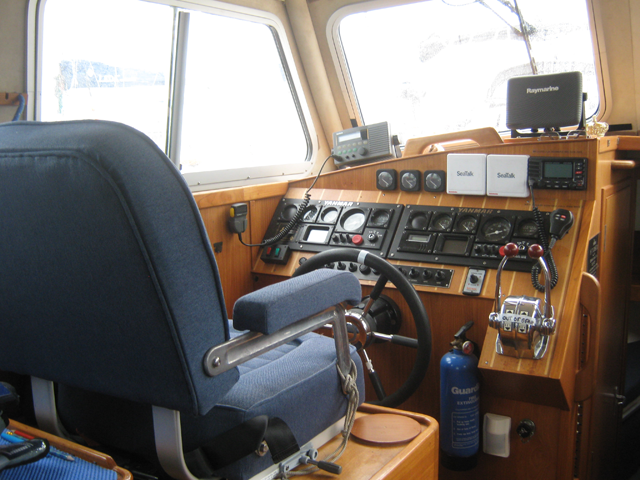

Steering compass, Depth Sounder, Raymarine chart plotter, Radar, GPS, Compass, Horn, Battery Charger, Long Shore cable, Log-Speedometer/Tri Data, Autopilot, Radar detector, AIS-VHF with DSC, Loud Hailer with automatic fog signal generator, 240 volt shore power.
Sprint 1500 electric anchor windlass.
20 Kg. Bruce anchor with 50m. Calibrated 9.8mm galvanised chain.
“Weaver” snap davits.
Stainless steel bow roller.
Stainless steel mooring bollards and cleats.
Warps and fenders.
4 S/S Bollards, 2 fairleads, S/S pulpit, Electric windlass with deck and helm position switches. Bruce type anchor and chain. Teak hand rails with access openings Lifelines below hand rail. 8 opening portholes. Escape Hatch, 2 solar powered vent fans. Liferings, boathook, Windscreen wipers fenders with blue socks and shore lines. Outboard bracket, Weaver snap davits. Swimming ladder and bathing platform.

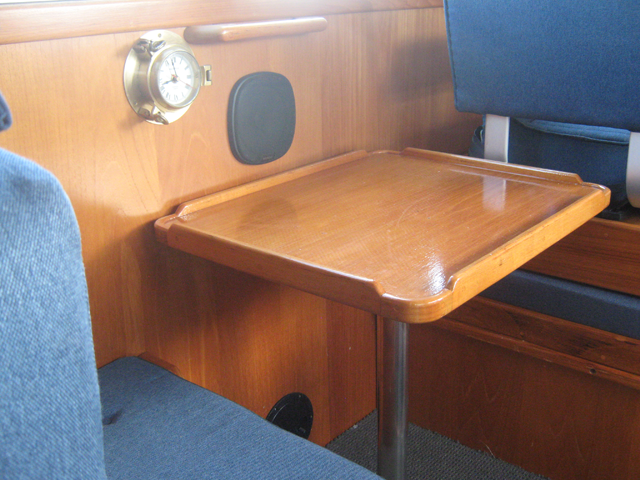

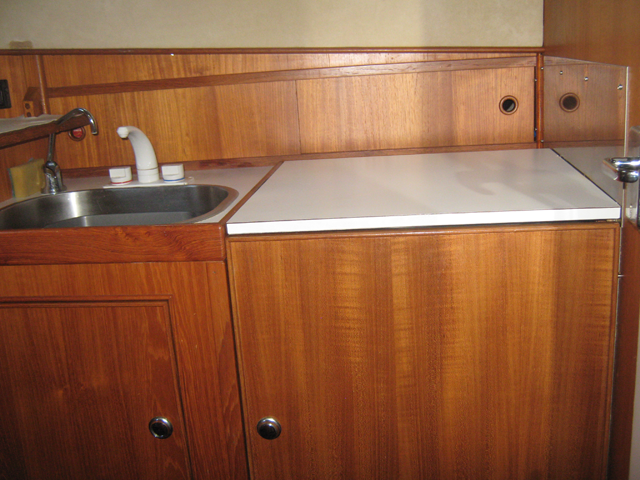

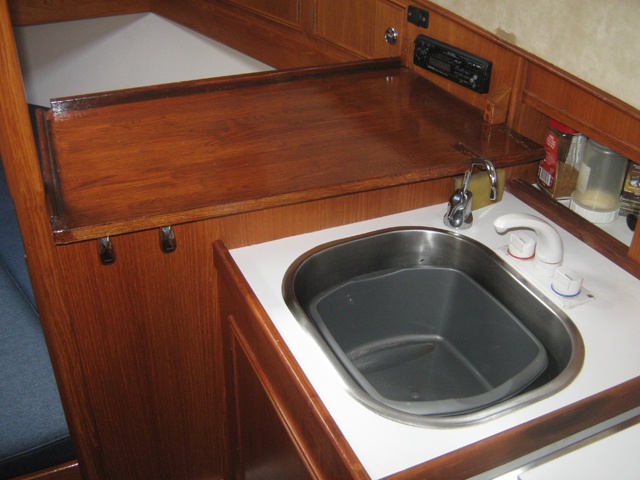

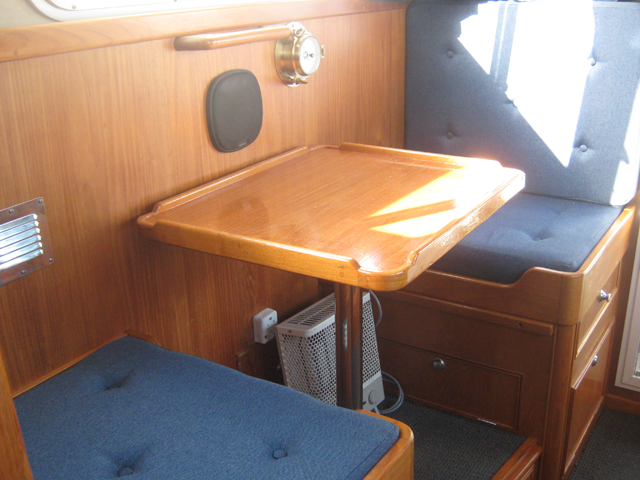

Woodwork is solid teak mouldings and teak veneer ply. The interior surface finish is in melamine lacquer. Side and overhead linings are in vinyl or carpet. Cabin and wheelhouse with fitted carpet. Eberspatcher heating, Calorifier.
